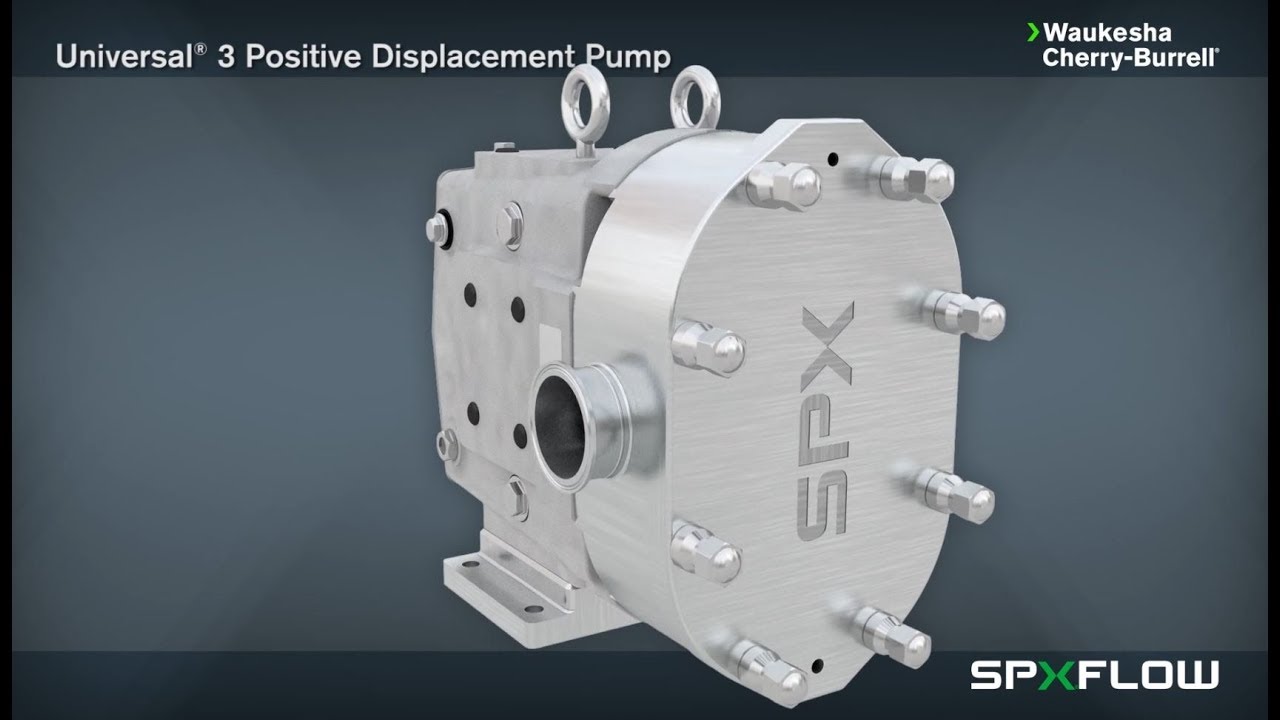

Waukesha Universal 3 Pump

Sanitary Clamp Type connections are available in a variety of styles, including S-Line, I-Line, and Q-Line

• Bevel Seat Available
• Optional European Types: DIN, SMS, RJT
• Male NPT and 150 lb. flanges are optional on Models 006 through 220 size
• 150 lb. flanges standard on Model 320
• Optional aseptic ports

Twin Wing – Standard; suitable for most applications. Rotor clearance Standard: up to 300°F (149°C)

• Low viscosity clearance rotors are optional for applications up to 200°F (93°C)
• Contact application engineering for other rotor clearance options

Fluoroelastomer FKM Options:

• PTFE/FFKM
• Fluoroelastomer (FKM)
• Fluoroelastomer (FKM) – Class 6
• EPDM
• EPDM – SF
• EPDM – Class 6
• Silicone
• Perfluoroelastomer (FFKM)
• FEP Encapsulates
• Buna-N – Metal Detectable
• FKM – Metal Detectable
• EPDM – Metal Detectable

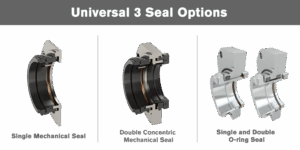

Single Mechanical Seal Standard seal configuration: silicon carbide rotary seal face and carbon stationary seal face. Alternate materials available for abrasive service. Options:

• Double Concentric Mechanical Seal – Used with flushing fluid to cool, lubricate, and flush away residue. Best arrangement for severe service.
• Single and Double O-ring Seal – Waukesha Cherry-Burrell’s traditional general-purpose seal. Low cost and easy to service. Suitable for low-pressure applications. 100 psi, 7 bar
• Elastomer choices for o-rings: Fluoroelastomer (FKM), EPDM, Perfluoroelastomer (FFKM)
• Mechanical seal material options: carbon, silicon carbide, tungsten carbide

Stainless steel 17-4 shafts, top shaft position, stainless steel bearing retainers, shaft completely sealed from product zone. Options:

• Lower shaft position
• Bearing isolators
• Pedestal shims for side-mounted pumps. The left-hand shaft position is standard
• The right-hand shaft is positioned on side side-mounted gearcase
• Aseptic cover
• Jacketed cover

Top shaft position options:

• Lower shaft position

Flat plate, epoxy-painted, with adjustable feet, SS coupling guard, and Lovejoy or Woods coupling standard. Options:

• 304 SS unpolished plate base with adjustable feet
• Portable base with rubber wheels
• SS tubular bases

Stainless steel tubular base with adjustable feet and stainless steel guard and coupling standard options:

• 304 SS plate
• Flat epoxy plate
• Portable base

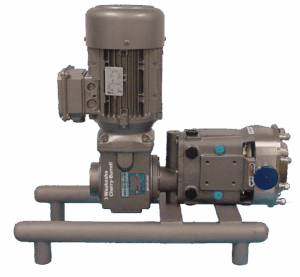

Coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard. Features:

• No shaft alignment necessary. No coupling guard required.
• Special base design enhances cleanability.
• Reduces the overall length of the complete unit by an average of 20-25%.
• Average of 20-25 gear ratios available per horsepower.
• Separate oil sump for gear reducer and timing gears.

• 304 SS polished plate base.
• NEMA or IEC frames available. A right-angle reducer is also available for additional space savings.
• 1/2 through 60 horsepower drive options available.
• Horizontal or vertical porting.

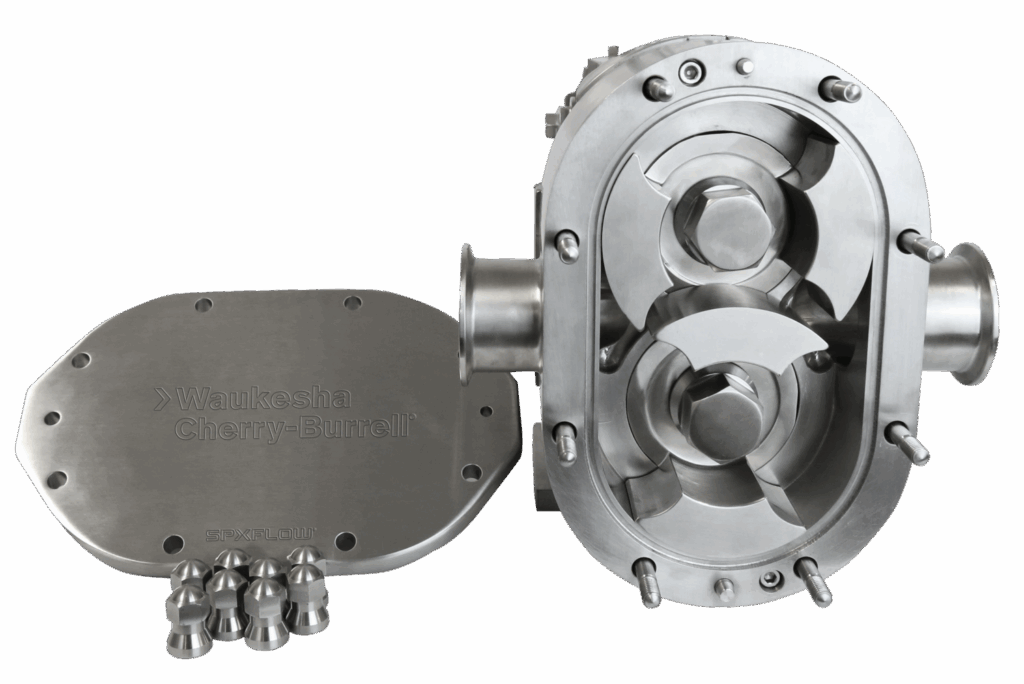

The Universal 3 introduces major mechanical upgrades, including front-loaded seals for easier maintenance, higher pressure capabilities, and improved rotor nuts for secure rotor retention. It also features shortened shafts, which reduce overhung load, improve shaft alignment, reduce vibration, and significantly extend seal and bearing life. Together, these enhancements deliver greater reliability, longer service intervals, and improved performance under demanding conditions.

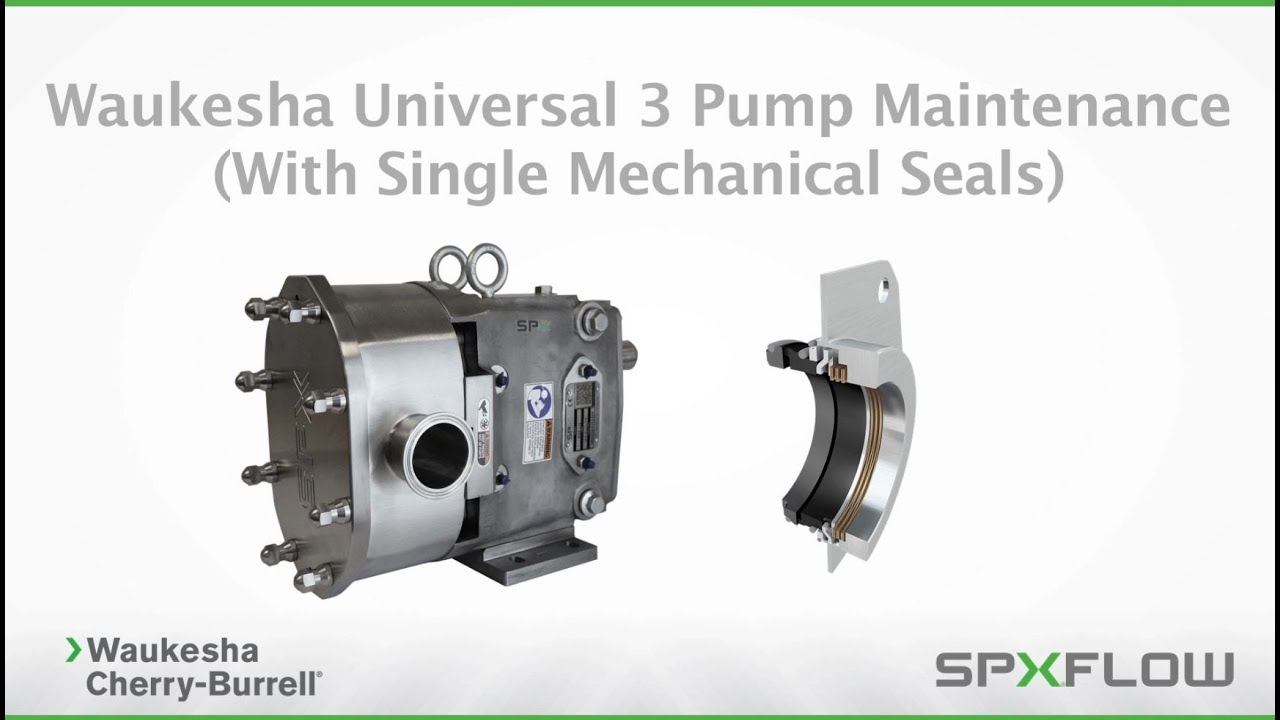

Front-loaded seals allow maintenance technicians to replace mechanical seals without removing the pump or body from the system, drastically reducing downtime and simplifying routine maintenance—especially valuable with larger pump models.

The Universal 3 excels in high-sanitation environments such as dairy, beverage, personal care, and food applications requiring top-tier cleanability, reliable performance across varying viscosities, and stringent hygienic standards like 3-A certification.
