Twin Screw Pumps for Sanitary Processing

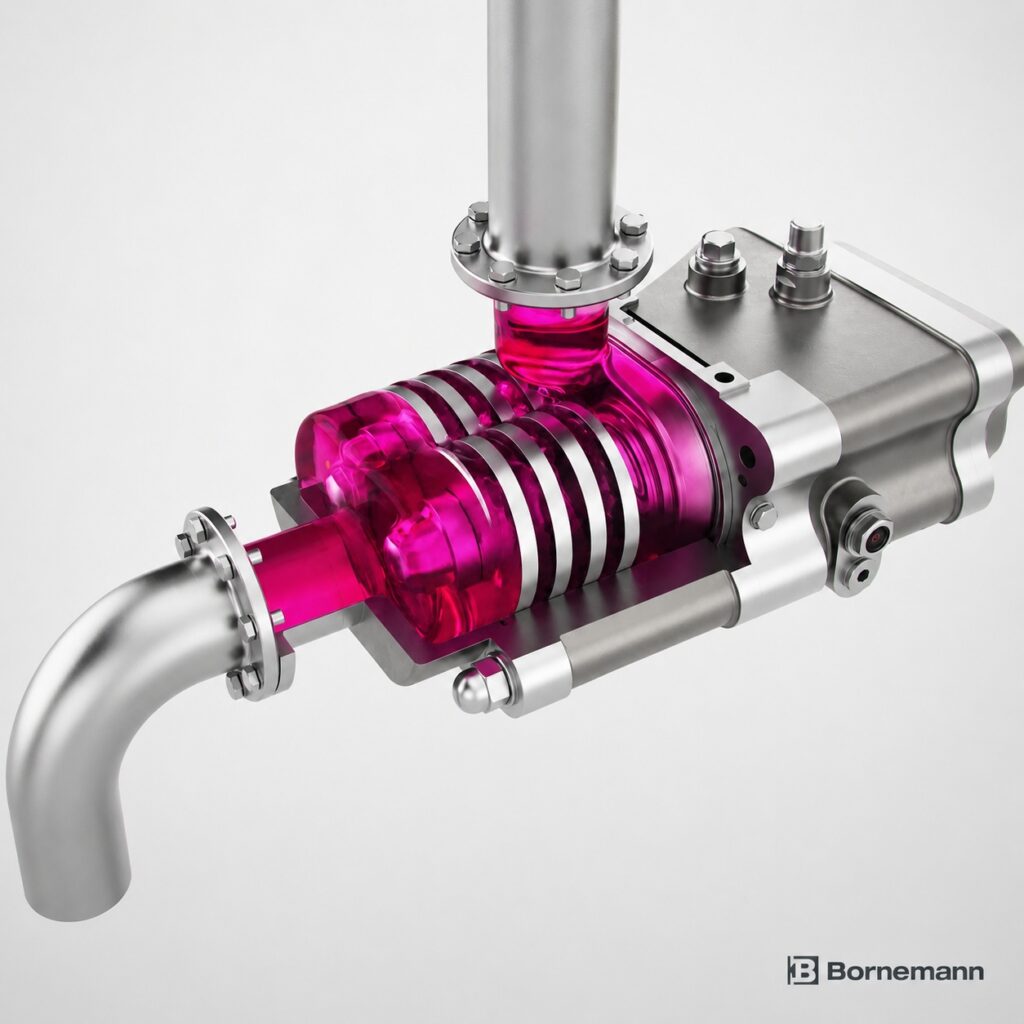

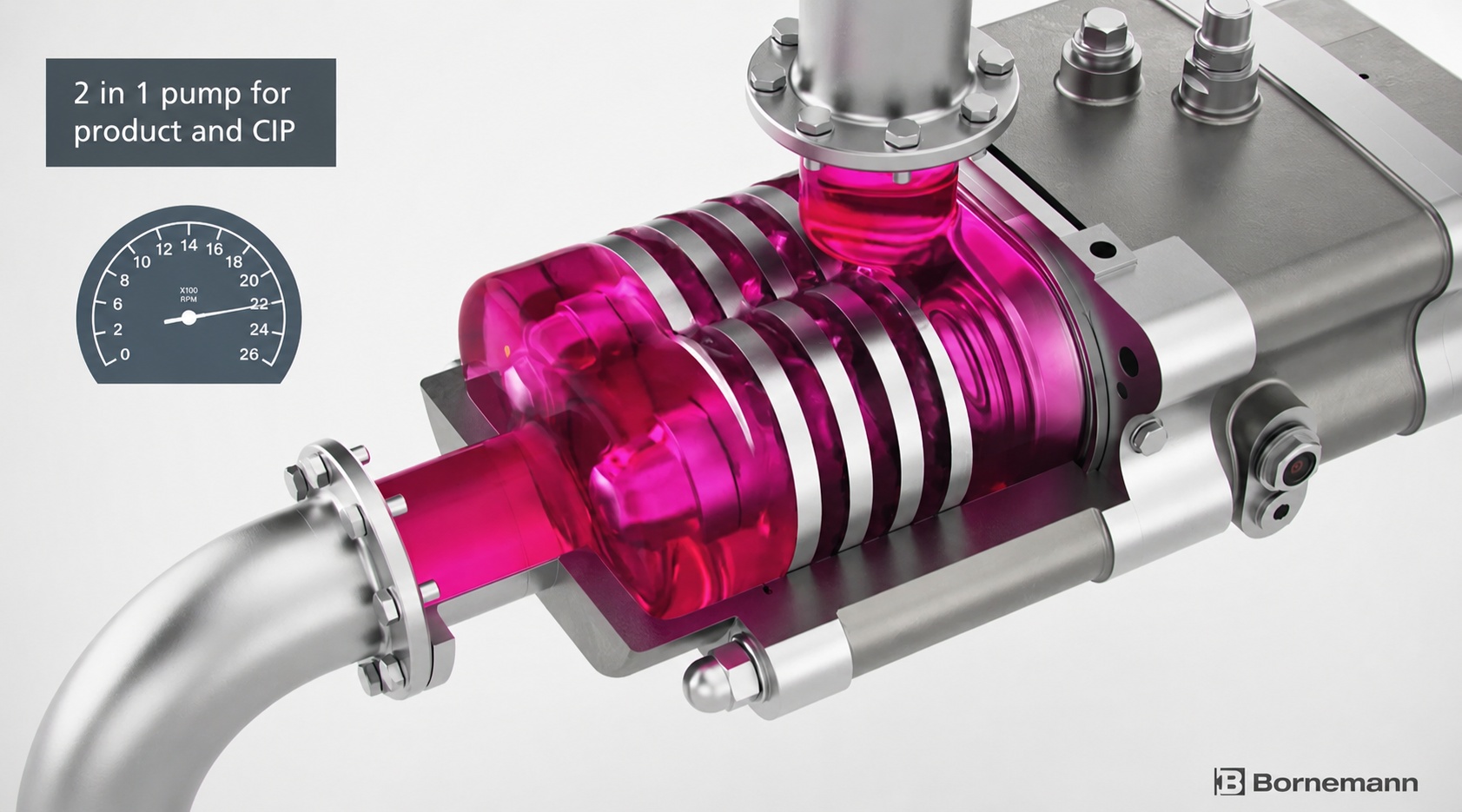

Bornemann Twin Screw Pump

Key Features

• Performance Boost:
  • Bornemann Pump Series SLH-5G provides enlarged performance by increasing the size of the hydraulic. Better performance with the same reliability Bornemann is known for.
• Continuous Technical Developments:
  • Bornemann uses the experience of previous generations and market developments to optimize the pump design in: • Efficiency • Thermal Shocks • Flexibility in Connection
• Built-in Exchangeability:
  • SLH-5G design allows a built-in exchange with all predecessor Bornemann SLH-Series pumps without additional adaptations. Enabling easy drop-in and replacement with previous generations and installed piping dimensions.
• Excellent Maintenance Design:
  • The newly patented Bornemann design without disassembly of the bearing unit for efficient maintenance.
• Smooth Operation:
  • Reduces slip pulse in low inlet pressure, low viscosity, and high pressure conditions.
• Reduced Noise Levels:
  • Operating principle virtually eliminates pressure fluctuations.

User Advantages

• Product Protective Procedure:
  • To avoid any waste of the product, the reverse operation allows to empty the suction piping from the product, before starting the cleaning process.
• Abrasive Conveying:
  • Different material options allow for conveyance of abrasive products and avoid contamination of the product.
• High Temperature Differences:
  • The design and material choices allow maximum temperature differences from 4°C to 95°C (39°F to 203°F), empowering a problem-free, high temperature cleaning process subsequent to the conveying process.
• High Viscosity:
  • The open suction layout allows a seamless alignment directly to the collection unit of the pumped product to provide the best possible reception of highly viscous products.
• Highly Sterile:
  • The conveying process with sterilized products is supported by a vapor barrier, designed to ensure the sterile condition of the product.
• Stable Temperature:
  • Heating jackets provide a constant temperature of the product to allow for an efficient and gentle conveyance.
• Constant Flow:
  • The optimized backflow screw selection guarantees constant flow rates for metering or feeding UHT to ensure a constant temperature level despite variation in pressure or viscosity.
